Structural Details

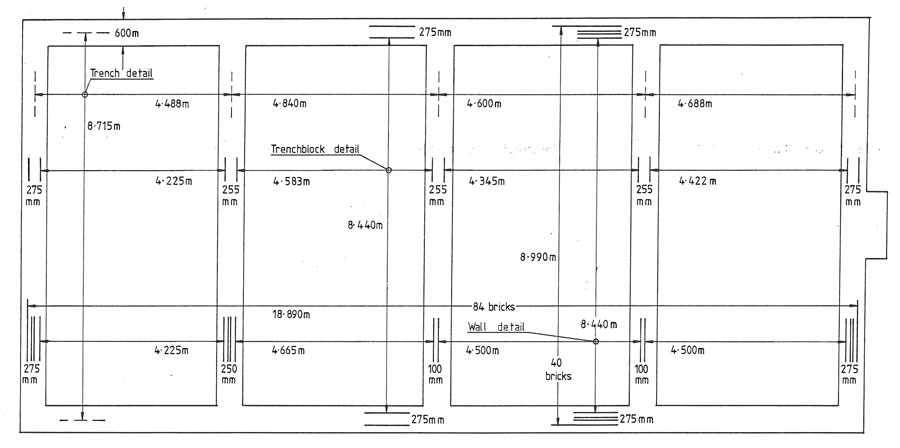

The Foundation Plan

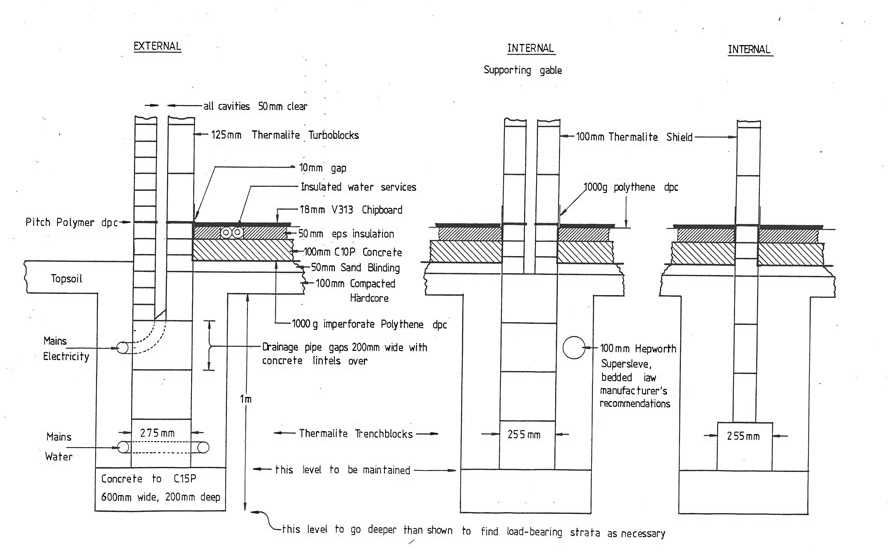

Foundations - load bearing requirements

The finally chosen foundations depths exceeded the depth recommended by a local building surveyor.

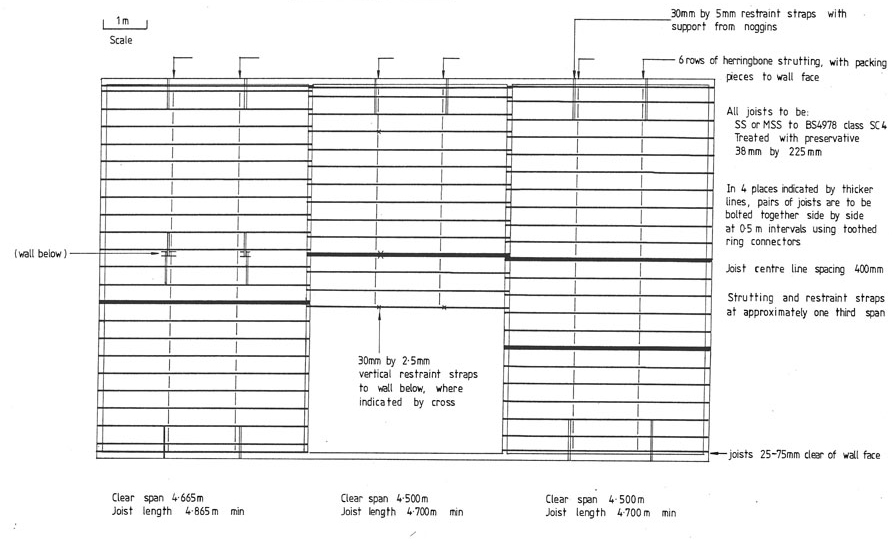

Upstairs Floor Joists

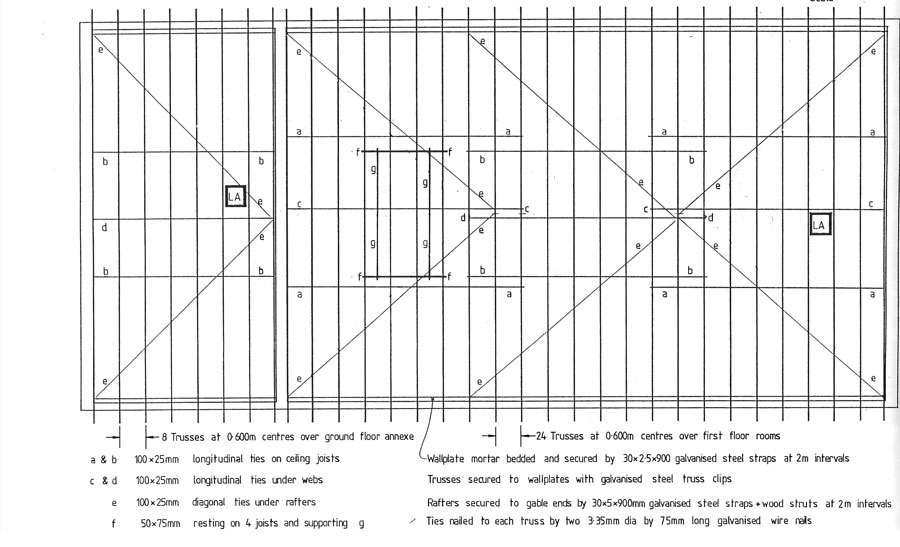

Loft Floor Joists

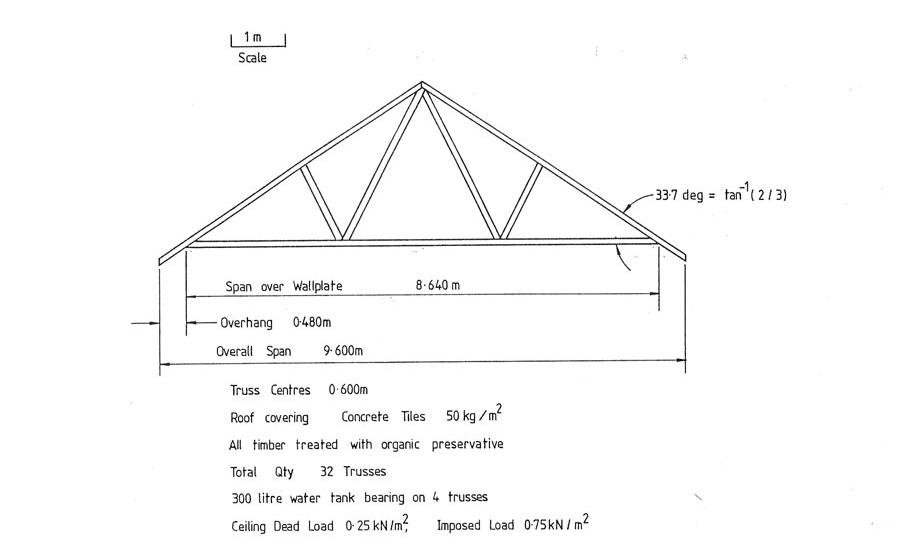

Roof Truss Specification

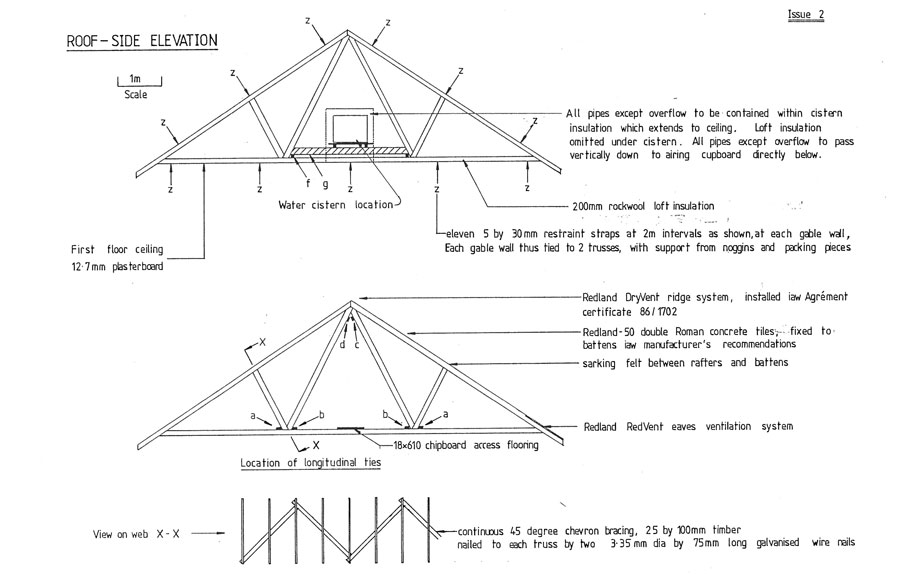

The Upper Loft

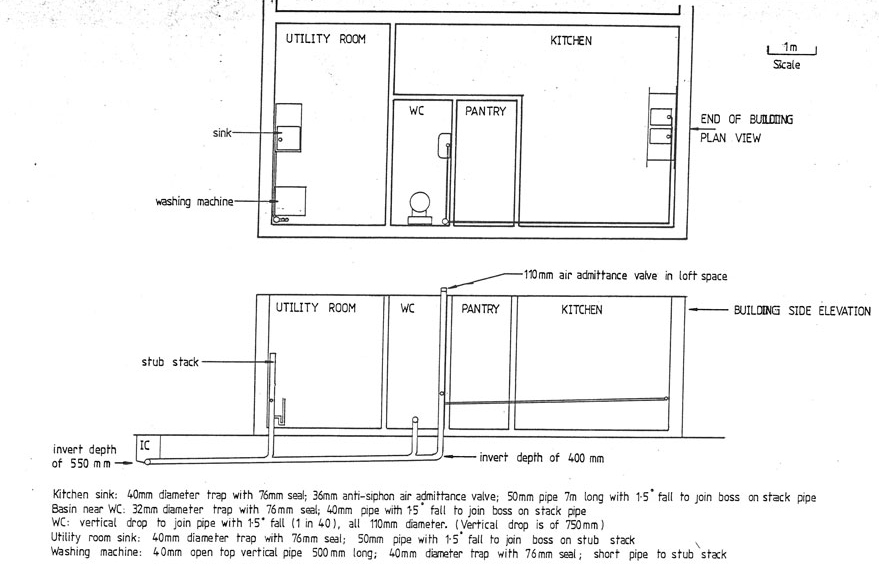

Internal Sanitary Pipework and Drainage - kitchen area

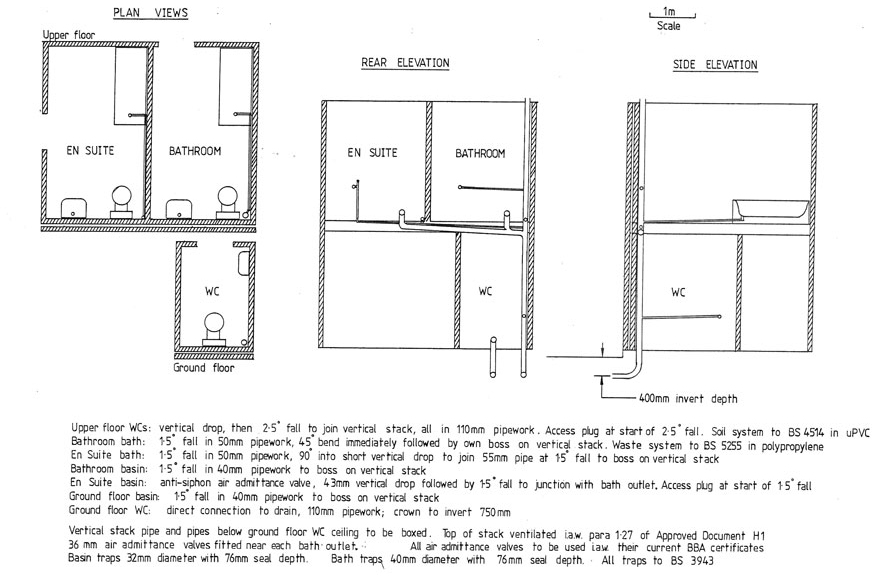

Internal Sanitary Pipework and Drainage - remaining area

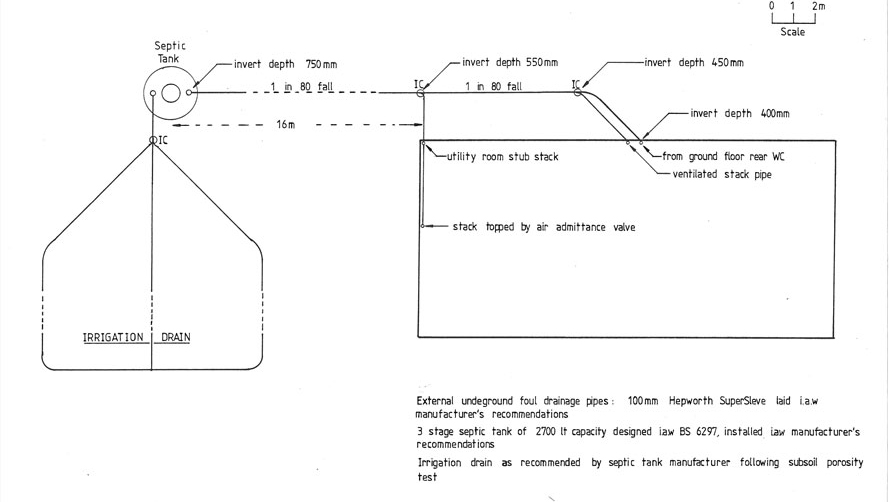

External Drainage - foul water
